En1092 Foot Valve
New Products From This Supplier

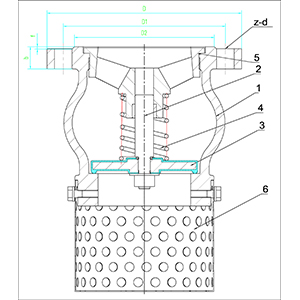

Specifications:
1. Body: GGG40/50
2. Stem: 2cr13
3. Disc: GGG40+EPDM
4. Spring: SS304
5. Bonnet: GGG40/50
6. Mesh: SS304
Application:
1.Face to face is according to EN1092-2
Working Range:
1.Potable water /drinking water
2.Water/wastewater treatment
Installing:
The valves are installed on the pump suction to prevent the pump column from draining upon pump shut down,and has a long back axial guide for reduced displacement with a synthetic rubber seal ring providing a drip-tight seal .
Test:
Working pressure: 1.0 MPa
Shell pressure: 1.5 MPa
Seat pressure: 1.1 MPa
Suitable Medium: Raw Sewage/Water
Dimensions:
| DN | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" |
| D | 165mm | 185mm | 200mm | 220mm | 250mm | 285mm | 340mm | 395mm | 445mm | 505mm | 565mm |
| D1 | 125mm | 145mm | 160mm | 180mm | 210mm | 240mm | 295mm | 350mm | 400mm | 460mm | 515mm |
| D2 | 99mm | 118mm | 132mm | 156mm | 184mm | 211mm | 266mm | 319mm | 370mm | 429mm | 480mm |
| b | 19mm | 19mm | 19mm | 19mm | 19mm | 19mm | 20mm | 22mm | 24.5mm | 24.5mm | 24.5mm |
| f | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 4mm | 4mm | 4mm |
| z-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-23 | 16-23 | 16-28 |
If you have specified requirements or any questions,welcome to ask for us.
